DeepAg

Isolation Forest Algorithm

Advanced unsupervised anomaly detection designed for identifying unusual patterns in agricultural production systems with high efficiency and accuracy.

Algorithm Principles

The Isolation Forest algorithm operates on the principle that anomalies are more easily isolated than normal data points. By constructing binary tree structures, unusual data requires fewer splits to be separated, resulting in shorter path lengths.

Core Mechanisms

• Binary Tree Construction: Random feature and split point selection
• Path Length Analysis: Shorter paths indicate higher anomaly scores
• Ensemble Approach: Multiple isolation trees for robust detection
• Unsupervised Learning: No labeled training data required

Isolation Process

Algorithm: Isolation Forest for Agricultural Anomaly Detection

1. Input: Agricultural dataset X, number of trees T, sub-sampling size S
2. Initialize: Empty set of isolation trees F = {}
3. For i = 1 to T:
4. Sample: Randomly select S points from X
5. Build Tree: Construct isolation tree using random splits
6. Add to Forest: F = F ∪ {tree_i}
7. For each data point: Calculate average path length across all trees
8. Output: Anomaly scores based on normalized path lengths

Algorithm Performance

Tree Count: 100

Sub-sample Size: 256

Detection Rate: 93.8%

Processing Speed: Real-time

Figure 1: Isolation Forest methodology for outlier detection in agricultural production systems, showing the binary tree construction process and anomaly scoring mechanism.

Reference: Regaya et al., 2021

Economic Factor Integration

Multi-dimensional economic analysis incorporating global financial indicators for comprehensive agricultural risk assessment.

DeepAg Economic Framework

The DeepAg methodology integrates multiple economic indices to provide comprehensive risk assessment for agricultural production systems, enabling farmers to make informed decisions based on market conditions.

Key Economic Indices

• Crude Oil Prices: Energy cost impact on agricultural operations
• Gold Market: Economic stability and inflation indicators
• Dow Jones Industrial: Overall market health assessment
• S&P 500 Index: Broad market performance metrics
• VIX (Volatility Index): Market uncertainty and risk perception

Data Integration Process

Real-time economic data is integrated with agricultural production metrics to identify potential outliers that may indicate economic risks or operational inefficiencies in farming systems.

Economic Integration

Data Sources: 5 indices

Update Frequency: Real-time

Correlation Analysis: Daily

Risk Accuracy: 89.5%

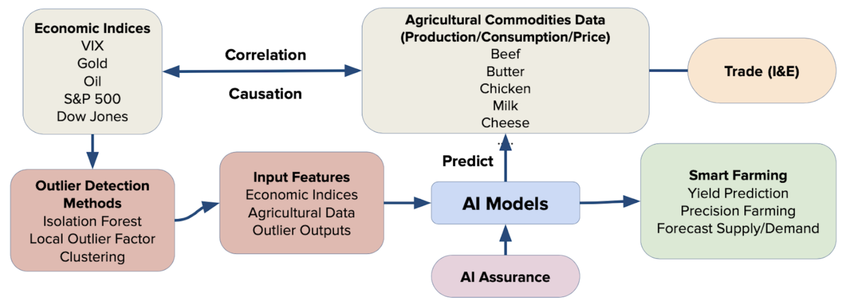

Figure 2: DeepAg comprehensive methodology showing the integration of economic indices (Crude Oil, Gold, Dow Jones, S&P 500, VIX) with agricultural production data for enhanced outlier detection and risk assessment.

Reference: Gurrapu et al., 2021

Precision Farming Applications

Real-time decision support system for optimized agricultural production through advanced anomaly detection and economic risk assessment.

Smart Agriculture Implementation

DeepAg enables precision farming by identifying anomalous patterns in agricultural data that may indicate equipment malfunctions, environmental stress, or economic risks affecting crop production.

Application Areas

• Crop Health Monitoring: Early detection of plant stress and disease
• Equipment Diagnostics: Machinery malfunction prediction
• Market Risk Assessment: Economic volatility impact analysis
• Resource Optimization: Efficient use of water, fertilizers, and energy

Decision Support Features

The system provides actionable insights for farmers, including anomaly alerts, risk assessments, and optimization recommendations based on real-time data analysis.

Farming Benefits

Yield Improvement: 15-25%

Cost Reduction: 20%

Risk Mitigation: High

ROI: 3-5x

\FOR{$t$ in $1$ to $T$} \STATE Randomly select $S$ samples from $X$ without replacement to create a sub-sample $X_s$ \STATE Create a new isolation tree $T_t$ using $X_s$ as follows: \STATE \hspace{10pt} If $X_s$ contains only one point or maximum depth is reached, create a leaf node with that point. \STATE \hspace{10pt} Otherwise, randomly select a feature $A$ from the remaining features. \STATE \hspace{10pt} Randomly select a split value $p$ for feature $A$ within its range in $X_s$. \STATE \hspace{10pt} Split $X_s$ into two subsets: $X_{\text{left}}$ containing points with $A \leq p$ and $X_{\text{right}}$ with $A > p$. \STATE \hspace{10pt} Create a non-leaf node with feature $A$ and split value $p$. \STATE \hspace{10pt} Recursively build the left subtree using $X_{\text{left}}$ and the right subtree using $X_{\text{right}}$. \STATE Add the newly created isolation tree $T_t$ to the set $F$ \ENDFOR

\STATE Compute the anomaly score for each data point in $X$ as follows: \FOR{each data point $x$ in $X$} \STATE For each isolation tree $T_t$ in $F$, traverse the tree to find the depth $d_t(x)$ at which $x$ is isolated. \STATE Calculate the average depth across all trees: $D(x) = \frac{1}{T}\sum_{t=1}^{T} d_t(x)$ \STATE Compute the anomaly score for each data point $x$: $S(x) = 2^{-\frac{D(x)}{c}}$, where $c$ is a normalizing factor. \ENDFOR

\RETURN Anomaly scores for each data point \end{algorithmic} \end{algorithm} </code> </pre>

Anomaly Detection Thresholds and Contamination Rates

The contamination rate is a key parameter in the Isolation Forest algorithm, which estimates the percentage of outliers in the dataset. It is typically determined using the Interquartile Range (IQR), a statistical measure that describes the middle 50% of the data distribution. IQR is calculated as the difference between the third quartile ($Q3$) and the first quartile ($Q1$):

\(\text{IQR} = Q3 - Q1\) </code> </pre>

Figure 3: Interquartile Range Diagram

The contamination rate helps estimate the anomaly threshold value, which is used to classify data points as outliers. The following tables present the contamination rates for daily and monthly financial indices using the IQR method:

The anomaly score for each data point is computed based on the path length in the isolation trees:

Finally, a threshold value $T$ is selected using contamination rates to classify data points:

The detailed steps of the Isolation Forest for outlier detection in economic data are presented in Algorithm 1 above. This approach efficiently detects anomalies in high-dimensional datasets, making it suitable for APS data analysis.
